Product Details:
Payment & Shipping Terms:
|
| Minimum Processing Range: | 25mm | Maximum Processing Range: | 89mm |
|---|---|---|---|
| Motor Power: | 1800w | Rotation Speed: | 42r/min |
| Wall Thickness: | Less Than 30mm | Working Voltage: | 220v |
| High Light: | 42r/Min Pipe Cutting And Beveling Machine,1800wPipe Cutting Beveling Machine,10" Pipe Cutting And Beveling Machine |
||
Products Features
Lower axial and radial clearance,light weight suitable for working at narrow and compicatedsite.
Can separate to two half,It's easy for the pipe when two end not open.
The machines do the cutting and beveling simultaneously.
The tool not only can process carbon steel ,stainless steel and alloy pipe with U,V welding seam,also can process convex flange welded.
Products Application Range
They are widely used in the fields of petroleum,chemical,natural gas,power supply construction,boiler and nuclear power,such as the project of west ga transporting to east China.
Products Driving Type
Electric-OCE,Pneumatic-OCP,Hydraulic-OCH,Numerical Controller-OCS
Product parameter
| Model number | Electric , pneumatic , hydraulic , CNC | |||
| specification | Processing outer diameter(mm) | OD(inch) | Wall thickness of cutting breach | Cutter speed |
| 89 | φ25-89 | 1‘-’3‘’ | ≤30 | 42r/min |
| 168 | φ 50-168 | 2‘’-6‘’ | ≤30 | 18r/min |
| 230 | φ 80-230 | 3‘’-8‘’ | ≤30 | 15r/min |
| 275 | φ 125-275 | 5‘’-10‘’ | ≤30 | 14r/min |
| 305 | φ 150-305 | 6‘’-10‘’ | ≤30 | 13r/min |
| 325 | φ 168-325 | 6‘’-12‘’ | ≤30 | 13r/min |
| 377 | φ 219-377 | 8‘’-14‘’ | ≤30 | 12r/min |
| 426 | φ 273-426 | 10‘’-16‘’ | ≤30 | 12r/min |
| 457 | φ 300-457 | 12‘’-18‘’ | ≤30 | 12r/min |
| 508 | φ 355-508 | 14‘’-20‘’ | ≤30 | 12r/min |
| 560 | φ 400-560 | 16‘’-22‘’ | ≤30 | 12r/min |
| 610 | φ 457-610 | 18‘’-24‘’ | ≤30 | 11r/min |
| 630 | φ 480-630 | 20‘’-24‘’ | ≤30 | 11r/min |
| 660 | φ 508-660 | 20‘’-26‘’ | ≤30 | 11r/min |
| 715 | φ 560-715 | 22‘’-28‘’ | ≤30 | 11r/min |
| 762 | φ 600-762 | 24‘’-30‘’ | ≤30 | 11r/min |
| 830 | φ 660-830 | 26‘’-32‘’ | ≤30 | 10r/min |
| 914 | φ 762-914 | 30‘’-36‘’ | ≤30 | 10r/min |
| 1066 | φ 914-1066 | 36‘-42‘’’ | ≤30 | 10r/min |
| 1230 | φ 1066-1230 | 42‘-48‘’’ | ≤30 | 10r/min |
| 1430 | φ 1230-1430 | 48‘-56‘’’ | ≤30 | 8r/min |

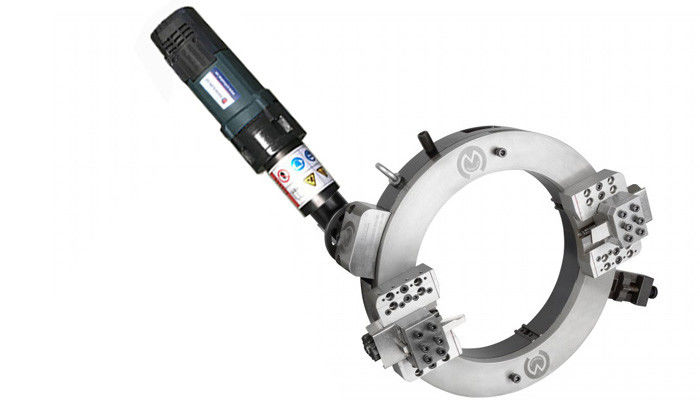

Products show
Product accessories knife holder
The cutter is strong and wear-resistant, with superior quality
Choose the corresponding tool holder according to different pipe processing
Processing diagram

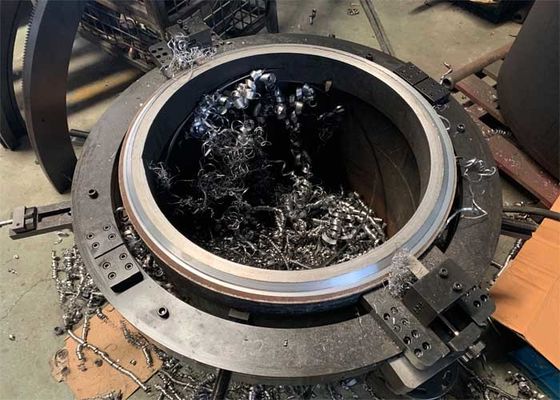

Engineering case
Product packaging
