Zhejiang Wellnit Mechanical Technology Co.,Ltd
Adhered to customer satisfaction as the goal, to pioneering innovation as the driving force, to honesty and trust worthiness as the principle, to quality and low price as the pursuit!
|
Product Details:
Payment & Shipping Terms:
|
| Suitable Material:: | Metal | Rated Power:: | 1.5-2KW |
|---|---|---|---|
| Driven:: | Pneumatic Motor | Pipe Thickness:: | ≤30mm |
| Body:: | Aluminum Cs | Voltage:: | 220-240V |
| Dimension(L*W*H):: | 565*515*270mm | Weight (KG):: | 40kgs |
| High Light: | Orbital Pipe Cutting And Beveling Machine,Metal Pipe Cutting Beveling Machine,2KW Pipe Cutting Beveling Machine |
||

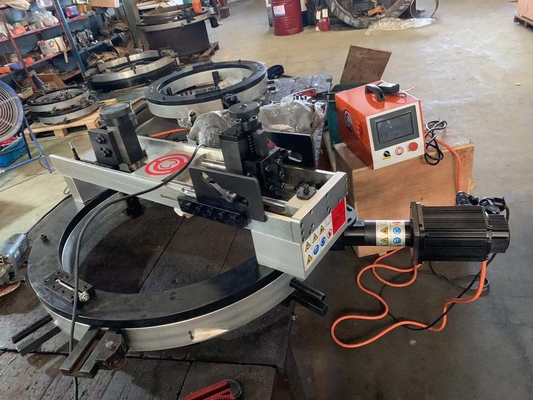

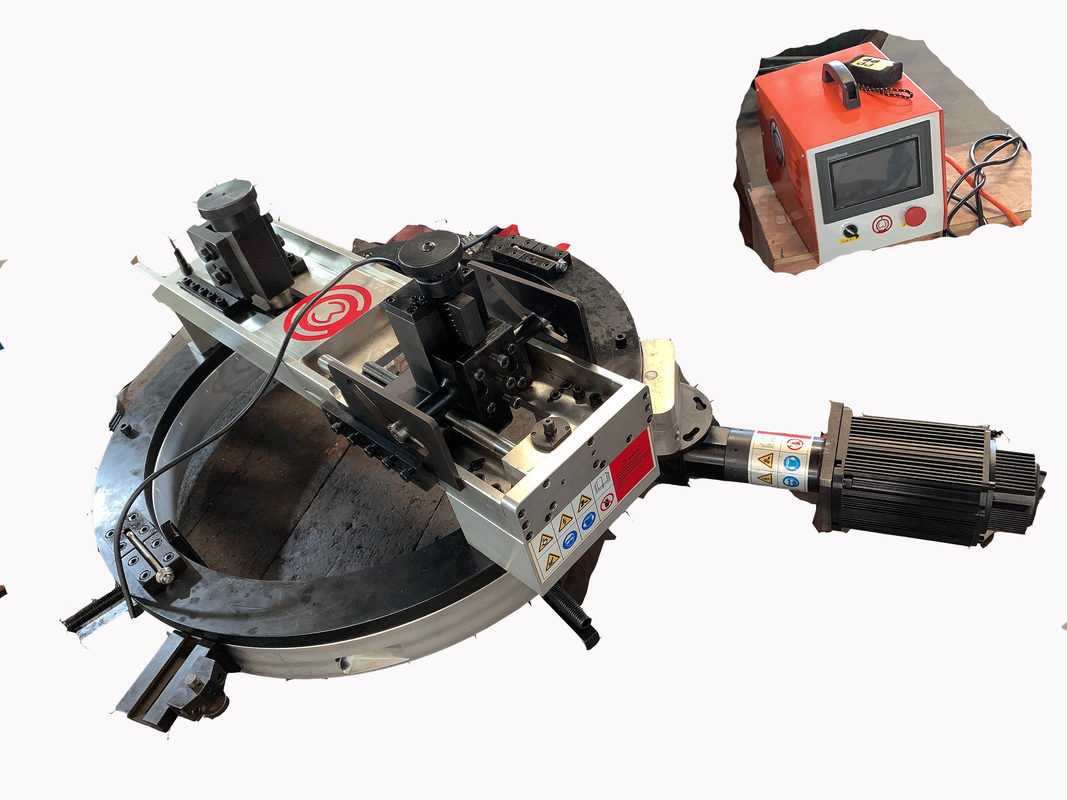

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.
Features:
| Model | Working Range (ID-OD) | Wall Thickness | Rotation Speed | |
| OCE/ OCP-89 | Φ25-89 | 3/4''-3'' | ≤35 | 42r/min |
| OCE/ OCP-159 | Φ50-159 | 2''-5'' | ≤35 | 20r/min |
| OCE/ OCP-168 | Φ50-168 | 2''-6'' | ≤35 | 18r/min |
| OCE/ OCP-230 | Φ80-230 | 3''-8'' | ≤35 | 15r/min |
| OCE/ OCP-275 | Φ125-275 | 5''-10'' | ≤35 | 14r/min |
| OCE/ OCP-305 | Φ150-305 | 6''-10'' | ≤35 | 13r/min |
| OCE/ OCP-325 | Φ168-325 | 6''-12'' | ≤35 | 13r/min |
| OCE/ OCP-377 | Φ219-377 | 8''-14'' | ≤35 | 12r/min |
| OCE/ OCP-426 | Φ273-426 | 10''-16'' | ≤35 | 12r/min |
| OCE/ OCP-457 | Φ300-457 | 12''-18'' | ≤35 | 12r/min |
| OCE/ OCP-508 | Φ355-508 | 14''-20'' | ≤35 | 12r/min |
| OCE/ OCP-560 | Φ400-506 | 16''-22'' | ≤35 | 12r/min |
| OCE/ OCP-610 | Φ457-610 | 18''-24'' | ≤35 | 11r/min |
| OCE/ OCP-630 | Φ480-630 | 20''-24'' | ≤35 | 11r/min |
| OCE/ OCP-660 | Φ508-660 | 20''-26'' | ≤35 | 11r/min |
| OCE/ OCP-715 | Φ560-715 | 22''-28'' | ≤35 | 11r/min |
| OCE/ OCP-762 | Φ600-762 | 24''-30'' | ≤35 | 11r/min |
| OCE/ OCP-830 | Φ660-813 | 26''-32'' | ≤35 | 10r/min |
| OCE/ OCP-914 | Φ762-914 | 30''-36'' | ≤35 | 10r/min |
| OCE/ OCP-1066 | Φ914-1066 | 36''-42'' | ≤35 | 10r/min |
| OCE/ OCP-1230 | Φ1066-1230 | 42''-48'' | ≤35 | 10r/min |
| Packaging Details | Shrink-wrapped machine body fixed inside, exporting wooden box outside, one set per plywood case. |
|---|---|
| Delivery Time | 3-15Days |
