Product Details:
Payment & Shipping Terms:
|
| Voltage Power: | AC 380V 50Hz | Total Power: | 3400w |
|---|---|---|---|
| Spindle Speed: | 1050r/min | Bevel Width: | 1-45mm |
| Feed Speed: | 0-1500r/min (adjustable) | Single Bevel Width: | 1-15mm |
| Bevel Angle: | 10°-60°（adjustable） | Clamp Thickness: | 6-40mm |
| High Light: | Automatic Plate Beveling Machine,3400w Plate Beveling Machine,1050r/Min Plate Beveling Machine |
||

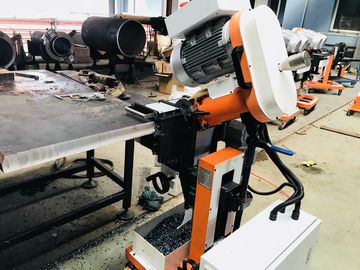

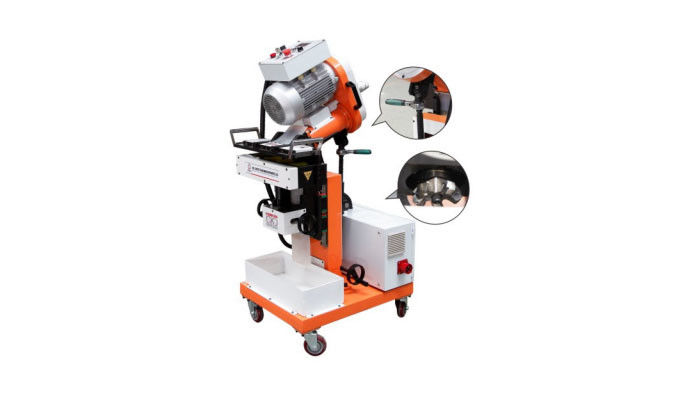

The PB-60 edge milling machine convenient movement and simple operation.
The finish of the groove is as high as Ra3.2-6.3.It is suitable for small factories.
The milling machine is equipped with commoly used CNC blades to make the customers use the cost more cheaply.
1. Cold processed, No sparks, Will not affect the material of plate.
2. Automatic feed, Automatic Marching , High efficiency, One person can operate multiple devices at the same time.
3. Smooth slope, Surface finish can be as high as Ra3.2- Ra6.3.
4. Numerical control display screen, Simple operation, Bevel speed can be adjustable, High precision.
5. Equipped with CNC blades, Low consumables.
6. Bevel Type:V, Y, K, X etc.
7. Can process carbon steel, stainless steel, alloy steel, titanium, and composite plates etc.
