Electric Thickness 110mm Pipe Cold Cutter 240V 2kw Split Frame

Portable Electric Pipe Cold Cutting And Beveling Machine Tool

1) Lower axial and radial clearance,Light weight

2) Cold cutting and beveling at same time,No spark

3) Can separate to two half,Easy for both end sealed pipe directly installation

4) Easy set-up & Robust operation

5) Process carbon steel,stainless steel,alloy etc with U,V,J compound bevel

Product Show

Production Details

Portable Pneumatic Pipe Cold Cutting And Beveling Machine Tool

The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe.

Features:

• Cold Cutting and Beveling improves safety
• Cutting and Beveling simultaneous
• Split Frame: easy mounted on pipeline
• Tools feed automatically
• Fast, Precision, On-site Beveling
• Minimal Axial and Radial clearance
• Light weight and compact design
• Easy set-up & Operation
• Electric or Pneumatic or Hydraulic driven
• Machining heavy-wall pipe from 3/4” up to 100"

•



FAQ & Order Guide

Q: Are you trading company or manufacturer ?

Before you place order to us, please let us know the following information:

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important)

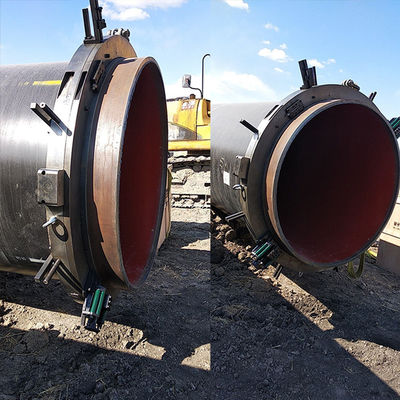

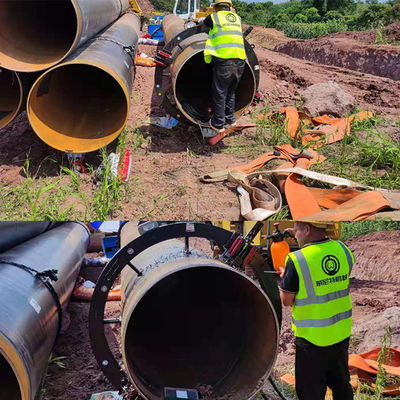

On-Site Project
