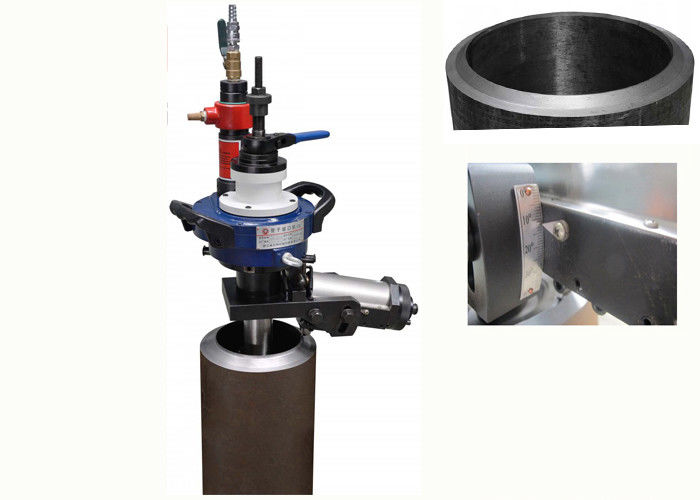

Pneumatic Internal Expansion Pipe Beveling Machine 16r/Min

Pneumatic Internal Expansion Pipe Beveling Machine 16r/Min
Pneumatic Internal Expansion Pipe Beveling Machine 16r/Min
video play

Large Image :  Pneumatic Internal Expansion Pipe Beveling Machine 16r/Min

Product Details:
Place of Origin: China
Brand Name: Wellnit
Certification: ISO9001
Model Number: ISP-252-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywooden
Delivery Time: within 7 days after received 100% payment
Payment Terms: T/T
Supply Ability: 35 sets a month
Contact Now
Detailed Product Description
Model: Pneumatic Spec: 252-2
Capacity(IDmm): Φ80-240 Wall Thickness: Less Than 75
Rotation Speed: 16r/min Motor Power: 1HP
High Light:

Internal Expansion Pipe Beveling Machine

,

Pneumatic Pipe Beveling Machine

,

Pipe Beveling Machine 16r/Min

High Speed Internal Expansion Type Pipe Beveling Machine

Main performance

1. Easy set uo & Operation,Bevel angle can be adjustable (0-40Deg)

2. Automatic Feed,High efficiency

3. Self-Centering,High Precision

4. Special for thick wall pipe (pipe thickness less than 75mm)



Features
● Cold Beveling . Can't effect pipe material
● Easy set-up & Operation, Bevel angle can be adjustable (0 - 40Deg)
● Automatic Feed, High eficiency
● Self-Centering, High Precision
● Special for thick wall pipe (pipe thickness less than 75mm)
● Work direction no limited, small work radius
● Ratchet Handle make tool feed / back easily
● Light Weight and compact design. Easy to carry
● Electric or Pneumatic driven for option

Specification

Model ISE-252-2 ISP-252-2 ISM-252-2
Driven Electric Pneumatic Electric (METABO Motor)
Power Supply 220-240V 1PH 50/60Hz 2000L/Min@1.0MPa 220-240V 1PH 50/60Hz
Motor Power 2000W 1 HP 2400W
Working Range (I.D) 80-240mm 80-240mm 80-240mm
Wall Thickness Less than 75mm Less than 75mm Less than 75mm
Rotation Speed 16r/min 16r/min 16r/min
Net Weight 45KG 45KG 45KG
Gross Weight 65KG 65KG 65KG



Machine Packing List

Name Unit Qty
Machine Set 1
Expanding Block Set 7
II Type Tool Pcs 3
Allen Wrench Pcs 2
Hexagon Wrench Pcs 2
Instruction Manual Pcs 1





Pneumatic Internal Expansion Pipe Beveling Machine 16r/Min 0

Pneumatic Internal Expansion Pipe Beveling Machine 16r/Min 1

Pneumatic Internal Expansion Pipe Beveling Machine 16r/Min 2

Pneumatic Internal Expansion Pipe Beveling Machine 16r/Min 3Pneumatic Internal Expansion Pipe Beveling Machine 16r/Min 4
