Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum And Steel | Range: | 610-762 |
|---|---|---|---|
| Thickness: | ≤110mm | Driven: | Electric,pneumatic,hydraulic |
| Package: | Wooden Case | Voltage: | 220-240V |
| Power: | 2kw | ||
| High Light: | Pipe Cold Cutting And Beveling Machine,Pipe Pnuematic Cutter Beveling Machine,Pipe Split Frame Beveling Machine |
||
Production Description

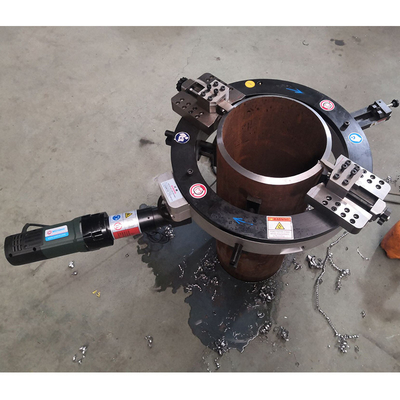

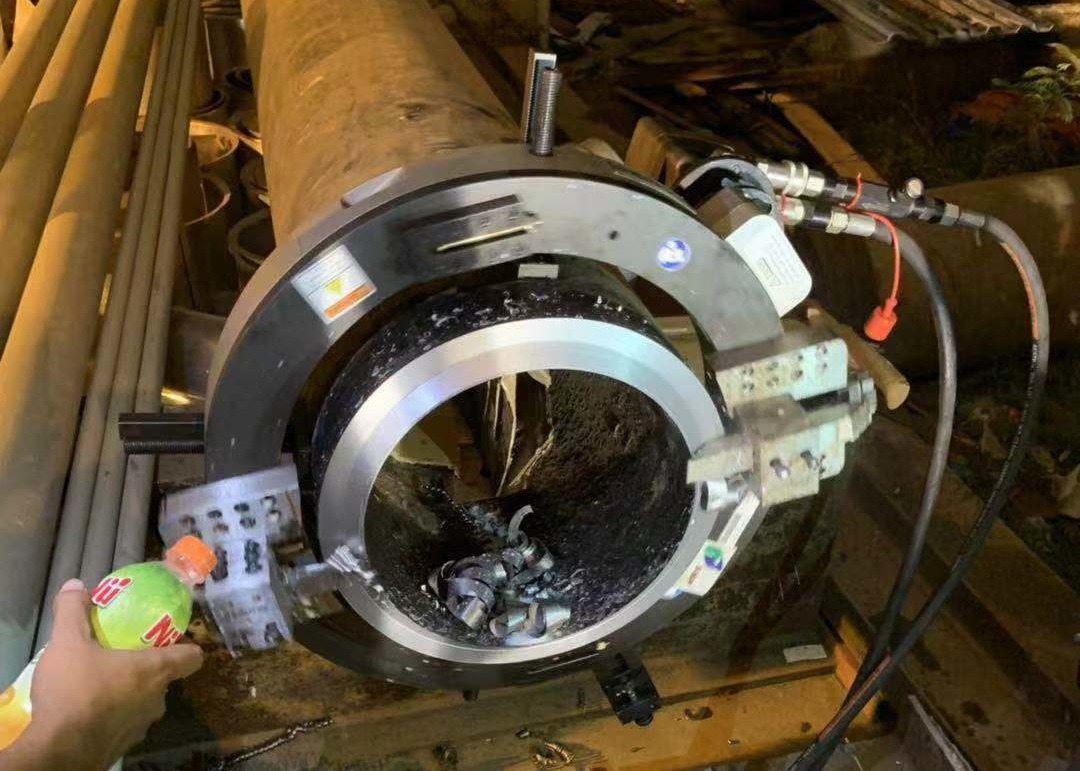

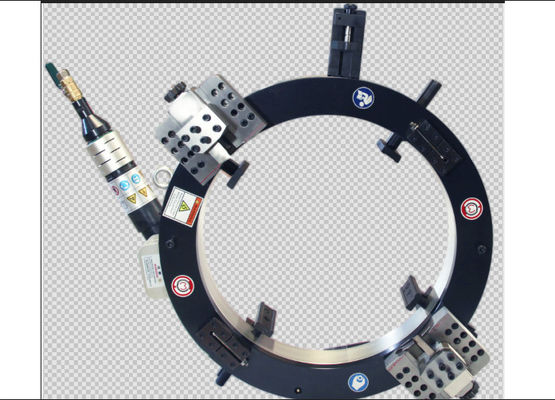

This Series Are Stainless Steel Portable Pneumatic Pipe Cutterwith the following advantages:
Technical Parameter
|
Model |
Working Range(ID-OD) |
Wall Thickness | Rotation Speed |
Air Pressure |
Air Consumption |
|
| OCP-89 | Φ25-89 | 3/4”-3” | ≤30mm | 50r/min | 0.6Mpa | 1500L/min |
| OCP-159 | Φ50-159 | 2”-5” | ≤30mm | 21r/min | 0.6Mpa | 1500L/min |
| OCP-168 | Φ50-168 | 2”-6” | ≤30mm | 21r/min | 0.6Mpa | 1500L/min |
| OCP-230 | Φ80-230 | 3”-8’ | ≤30mm | 20r/min | 0.6Mpa | 1500L/min |
| OCP-275 | Φ125-275 | 5”-10” | ≤30mm | 20r/min | 0.6Mpa | 1500L/min |
| OCP-305 | Φ150-305 | 6”-10” | ≤30mm | 18r/min | 0.6Mpa | 1500L/min |
| OCP-325 | Φ168-325 | 6”-12” | ≤30mm | 16r/min | 0.6Mpa | 1500L/min |
| OCP-377 | Φ219-377 | 8”-14” | ≤30mm | 13r/min | 0.6Mpa | 1500L/min |
| OCP-426 | Φ273-426 | 10”-16” | ≤30mm | 12r/min | 0.7Mpa | 1800L/min |
| OCP-457 | Φ300-457 | 12”-18” | ≤30mm | 12r/min | 0.7Mpa | 1800L/min |
| OCP-508 | Φ355-508 | 14”-20” | ≤30mm | 12r/min | 0.7Mpa | 1800L/min |
| OCP-560 | Φ400-560 | 16”-22” | ≤30mm | 12r/min | 0.7Mpa | 1800L/min |
| OCP-610 | Φ457-610 | 18”-24” | ≤30mm | 11r/min | 0.7Mpa | 1800L/min |
| OCP-630 | Φ480-630 | 20”-24” | ≤30mm | 11r/min | 0.7Mpa | 1800L/min |
| OCP-660 | Φ508-660 | 20”-26” | ≤30mm | 11r/min | 0.7Mpa | 1800L/min |
| OCP-715 | Φ560-715 | 22”-28” | ≤30mm | 11r/min | 0.7Mpa | 1800L/min |
| OCP-762 | Φ600-762 | 24”-30” | ≤30mm | 11r/min | 0.8Mpa | 2000L/min |
| OCP-830 | Φ660-813 | 26”-32” | ≤30mm | 10r/min | 0.8Mpa | 2000L/min |
| OCP-914 | Φ762-914 | 30”-36” | ≤30mm | 10r/min | 0.8Mpa | 2000L/min |
| OCP-1066 | Φ914-1066 | 36”-42” | ≤30mm | 9r/min | 0.8Mpa | 2000L/min |
| OCP-1230 | Φ1066-1230 | 42”-48” | ≤30mm | 8r/min | 0.8Mpa | 2000L/min |
Drive Model
Electric Pneumatic
Hydraulic CNC
Order Guide
Before you place order to us, please let us know the following information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound preparation)
Advise your pipe material ( Carbon steel, stainless steel or others)
Other special demands about machine
The spare parts needed
If the pipe wall thickness more than 30mm, inform us in advance (Important)
